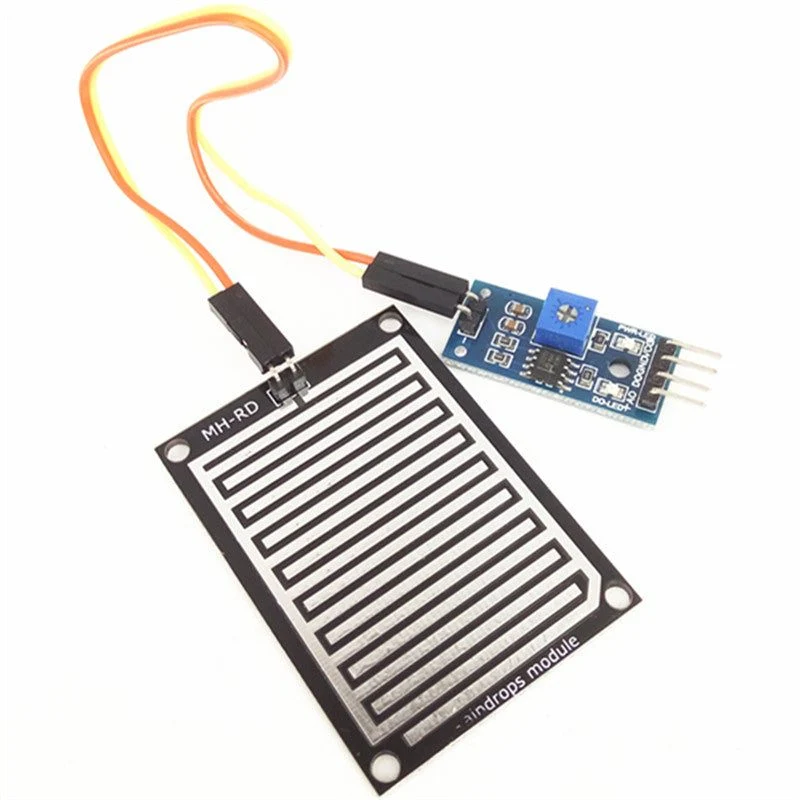

The LM393 Raindrop Detection Sensor Module is a simple environmental sensing module designed to detect the presence of rain or water droplets on its sensing plate. It uses a conductive sensing surface whose electrical resistance changes when water bridges the exposed traces.
The module combines a rain-sensing board with a control board based on the LM393 comparator. The sensing board provides a varying electrical signal that can be read through the analog output, while the comparator provides a threshold-based digital output.

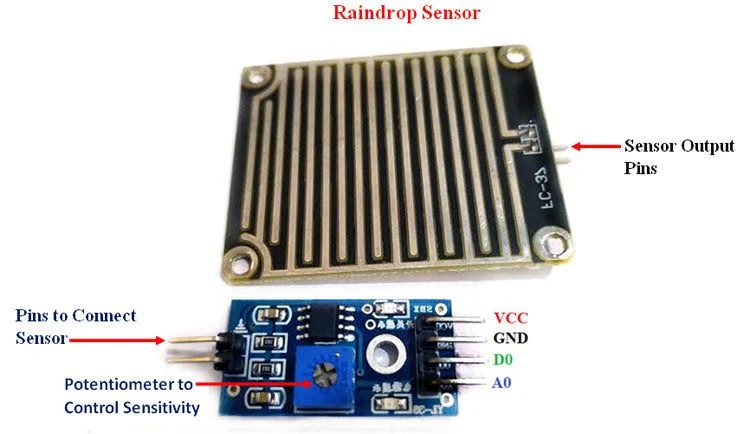

An onboard potentiometer allows adjustment of the digital detection threshold, making the module useful for applications where a controller needs to respond when the sensing surface becomes sufficiently wet.
The module is suitable for electronics prototyping, Arduino and microcontroller projects, weather-monitoring experiments, smart agriculture demonstrations, automatic window or wiper prototypes, and IoT environmental sensing.
The analog output can be used to observe changes in the sensor signal associated with the amount of water present on the sensing surface. It should not be treated as a calibrated rainfall measurement in millimetres or as a precise rain-intensity instrument without calibration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Raindrop / Rain Detection Sensor Module |
| Sensing Principle | Resistive / conductive water detection |
| Comparator IC | LM393 |
| Operating Voltage | 3.3–5V DC |
| Output Type | Analog + Digital |
| Analog Output | AO – variable sensor signal |
| Digital Output | DO – threshold-based switching output |
| Sensitivity Adjustment | Onboard potentiometer |
| Sensor Board | Conductive rain-sensing plate |
| Sensor Plate Size | Approx. 5 × 4 cm |
| Control Board Size | Approx. 3.2 × 1.4 cm |
| Installation | Mounting holes provided |
| Suitable Controllers | Arduino and compatible microcontrollers |
| Primary Applications | Rain detection, moisture detection, weather-monitoring experiments and automation |
| Quantity | 1 Module |
Technical Specification Pointer
Resistive raindrop sensing module with LM393 comparator, analog and digital outputs, adjustable digital threshold, and approximately 5 × 4 cm sensing plate.
Key Features
- Dual Output: Provides both analog and digital signals for flexible microcontroller integration.
- LM393 Comparator: Converts the sensor signal into a threshold-based digital output.
- Adjustable Sensitivity: Onboard potentiometer allows the digital detection threshold to be adjusted.
- Conductive Rain-Sensing Plate: Detects water droplets through changes in electrical conductivity/resistance.
- Compact Design: Separate sensing and control boards simplify connection and experimentation.
- Arduino-Compatible: Suitable for Arduino and other compatible microcontroller projects.
- Useful for Environmental Projects: Suitable for rain detection, moisture monitoring and automation experiments.
Recommended Applications
- Rain detection systems
- Weather-monitoring projects
- Smart agriculture demonstrations
- Automatic window or roof-cover prototypes
- Automatic windshield-wiper prototypes
- Plant and environmental monitoring
- IoT environmental sensing
- Home automation projects
- Water-droplet detection
- Arduino and ESP-based experiments
Educational Applications
- Understanding conductive/resistive sensing
- Analog sensor signal measurement
- Digital threshold detection
- Comparator-based circuits
- Environmental monitoring projects
- Arduino sensor interfacing
- IoT weather-monitoring demonstrations
- Smart agriculture projects
Project Possibilities
- Automatic rain alert
- Rain-triggered buzzer or indicator
- Smart window-closing prototype
- Rain detection dashboard
- Plant/environment monitoring system
- Automated weather-response prototype
- IoT rain-monitoring experiment
Compatibility Notes
The module can be connected to compatible microcontrollers through its analog and digital outputs. When using a controller with 3.3V-only GPIO/ADC inputs, ensure that the actual output voltage is within the controller’s permitted input range.

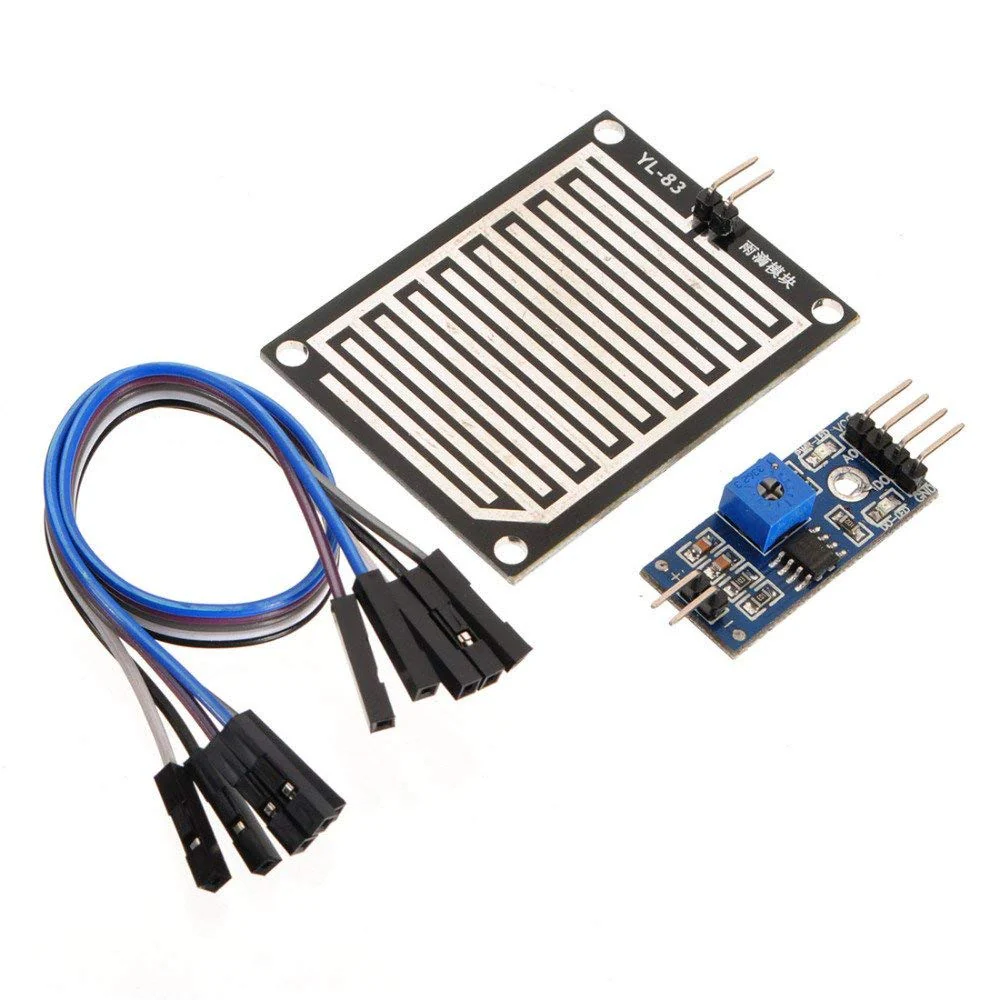

What’s Included
- 1 × Raindrop Detection Sensor Board
- 1 × LM393 Control Board
Important Notes
- This is a rain/water detection sensor, not a calibrated rain gauge.
- The analog output represents changes in the sensor signal and should not be interpreted as an exact rainfall value without calibration.
- The digital output is controlled by the adjustable comparator threshold.
- The sensing plate is intended for detecting water on its surface; it is not designed to remain permanently submerged.
- Sensor response can vary with water quantity, surface condition, contamination and environmental conditions.
- Use an appropriate power supply and ensure that the output voltage is suitable for the connected microcontroller.
- The module is intended for educational, hobby, prototyping and automation applications and is not a certified weather-monitoring or safety instrument.
Product Summary
The LM393 Raindrop Detection Sensor Module provides a simple and practical way to add rain and water-droplet detection to electronics projects. With a conductive sensing plate, LM393 comparator, adjustable digital threshold, and analog/digital outputs, it is well suited for Arduino, IoT, smart agriculture and environmental-monitoring experiments.
