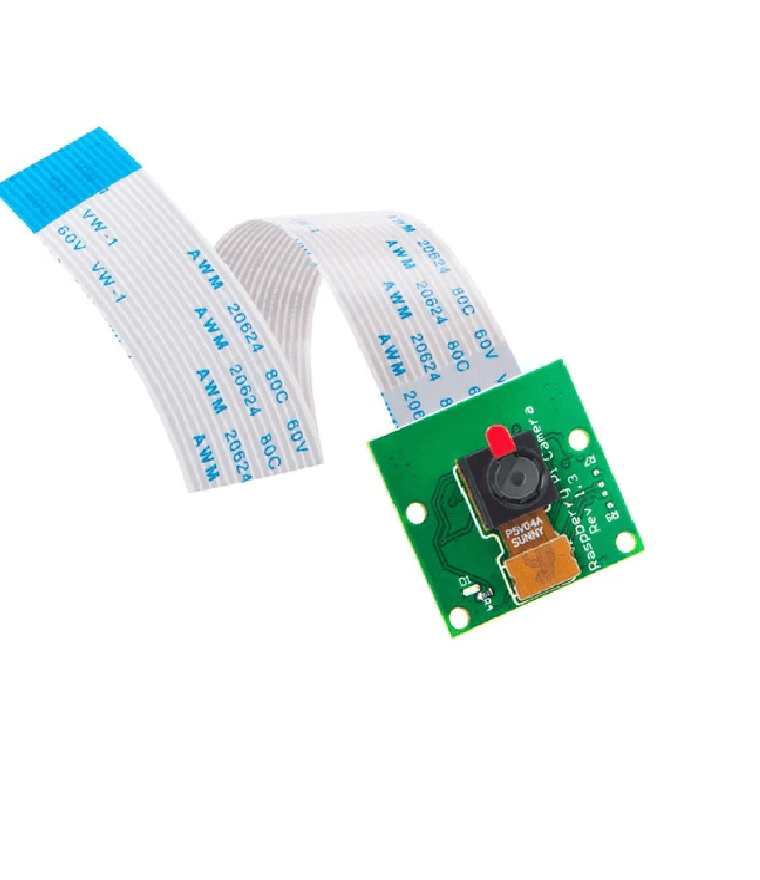

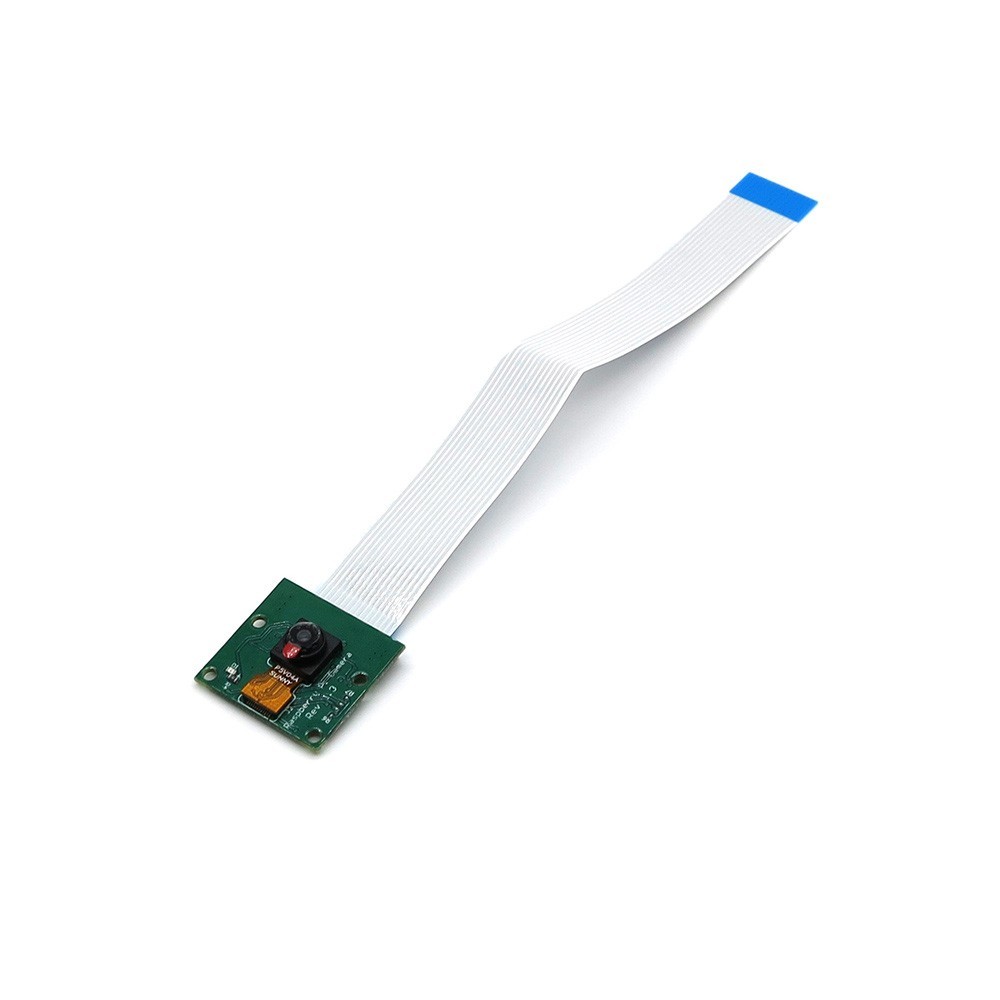

The 5MP OV5647 Raspberry Pi-Compatible Camera Module provides a compact camera solution for Raspberry Pi-based computer vision, image capture, monitoring and embedded-vision projects.
It uses the OmniVision OV5647 image sensor with a maximum still-image resolution of 2592 × 1944 pixels (5MP). Supported video modes include 1920 × 1080 at up to 30 fps, 1280 × 720 at up to 60 fps, and 640 × 480 at up to 60/90 fps, depending on the selected operating mode and software configuration.
The camera uses a 15-pin MIPI Camera Serial Interface (CSI) connection. Raspberry Pi’s camera software supports the OV5647 sensor through its V1 camera support, making the sensor suitable for compatible Raspberry Pi camera applications.
With its compact form factor and fixed-focus lens, the module can be used for image-capture projects, computer-vision experiments, robotics vision, IoT monitoring and educational electronics projects.
It can serve as a practical camera input for software such as OpenCV and other compatible image-processing or computer-vision applications. Actual computer-vision performance depends on the Raspberry Pi model, software, lighting conditions and processing workload.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Raspberry Pi-Compatible Camera Module |
| Image Sensor | OmniVision OV5647 |
| Sensor Resolution | 2592 × 1944 pixels |
| Still Image Resolution | 5 Megapixels |
| Optical Format | 1/4-inch |
| Pixel Size | 1.4 × 1.4 µm |
| Focus Type | Fixed Focus |
| Focus Range | Approx. 1 m to infinity |
| Focal Length | 3.60 mm ± 0.01 |
| Horizontal Field of View | Approx. 53.5° |
| Vertical Field of View | Approx. 41.4° |
| Maximum Video Modes | 1080p30, 720p60, 640 × 480p60/90 |

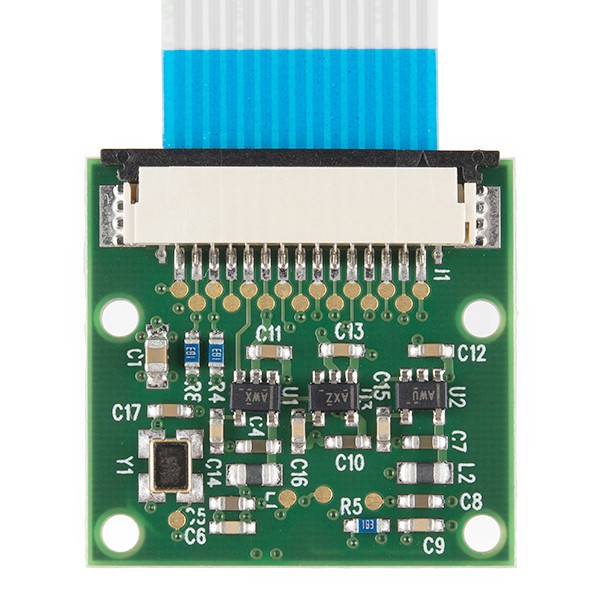

| Interface | 15-pin MIPI Camera Serial Interface (CSI) |
| Camera Interface Type | CSI-2 |
| Lens Type | Fixed-focus lens |
| Camera Board Size | Approx. 25 × 24 mm |
| Approx. Module Weight | 3 g |
| Application | Image capture, computer vision, robotics, IoT and embedded vision |
| Quantity | 1 camera module |
Technical Specification Pointer
5MP OmniVision OV5647 image sensor with 2592 × 1944 still-image resolution, fixed-focus lens, approximately 53.5° × 41.4° field of view, and 15-pin MIPI CSI interface.
Key Features
- 5MP OmniVision OV5647 image sensor
- Maximum still-image resolution of 2592 × 1944 pixels
- 1080p video at up to 30 fps
- 720p video at up to 60 fps
- 640 × 480 video at up to 60/90 fps
- 15-pin MIPI CSI camera interface
- Fixed-focus lens
- Approx. 53.5° horizontal field of view
- Approx. 41.4° vertical field of view
- Compact approximately 25 × 24 mm camera board
- Suitable for Raspberry Pi-compatible camera applications
- Useful for computer vision and embedded imaging projects
Recommended Applications
- Raspberry Pi camera projects
- Computer vision experiments
- OpenCV projects
- Robotics vision
- Image capture
- IoT monitoring
- Smart-camera prototypes
- Embedded vision applications
- Educational camera projects
- Object-detection experiments
- Machine-vision prototypes
Educational Applications
- Digital image processing
- Computer vision fundamentals
- OpenCV experimentation
- Camera interfacing
- Image and video capture
- Robotics vision
- IoT monitoring
- Embedded Linux camera projects
- Python-based vision projects
- Sensor and camera integration
Project Possibilities
- Raspberry Pi surveillance prototype
- Object-detection project
- Line and lane detection experiment
- Image-based robotic navigation
- Smart plant monitoring camera
- Time-lapse camera
- Motion-detection camera
- QR/code recognition experiments
- Remote image-capture system
- Computer-vision learning platform
Compatibility Notes
The module uses a 15-pin MIPI CSI connector. Raspberry Pi’s standard 15-pin camera connector is used on flagship Raspberry Pi models up to and including Raspberry Pi 4. Raspberry Pi 5 uses a 22-pin camera connector, so an appropriate Standard-to-Mini camera cable or adapter is required for Raspberry Pi 5.
Software support depends on the Raspberry Pi model, operating system and camera configuration. Raspberry Pi OS provides support for the OV5647/V1 camera sensor.
What’s Included
- 1 × 5MP OV5647 Camera Module
Important Notes
- This listing is for a camera module, not a complete Raspberry Pi computer.
- Camera cable is not included unless specifically stated in the package.
- Raspberry Pi 5 requires the appropriate camera cable/adapter because it uses a 22-pin camera connector.
- Image quality and usable frame rate depend on lighting, software configuration and the connected Raspberry Pi hardware.
- The module is intended for electronics, educational, prototyping and embedded-vision applications.
- This is not a certified security, surveillance or safety device.
- Actual performance of computer-vision or AI applications depends on the software, processing hardware and model being used.
Product Summary
The 5MP OV5647 Raspberry Pi-Compatible Camera Module is a compact CSI-based camera featuring a 5MP OmniVision OV5647 sensor, fixed-focus lens and support for up to 2592 × 1944 still images. With 1080p30 and 720p60 video capabilities, it provides a practical camera input for Raspberry Pi-based computer vision, robotics, IoT and STEM projects.
