Smart Plant Guardian

Original price was: ₹ 9,543.00.Current price is: ₹ 4,999.00.

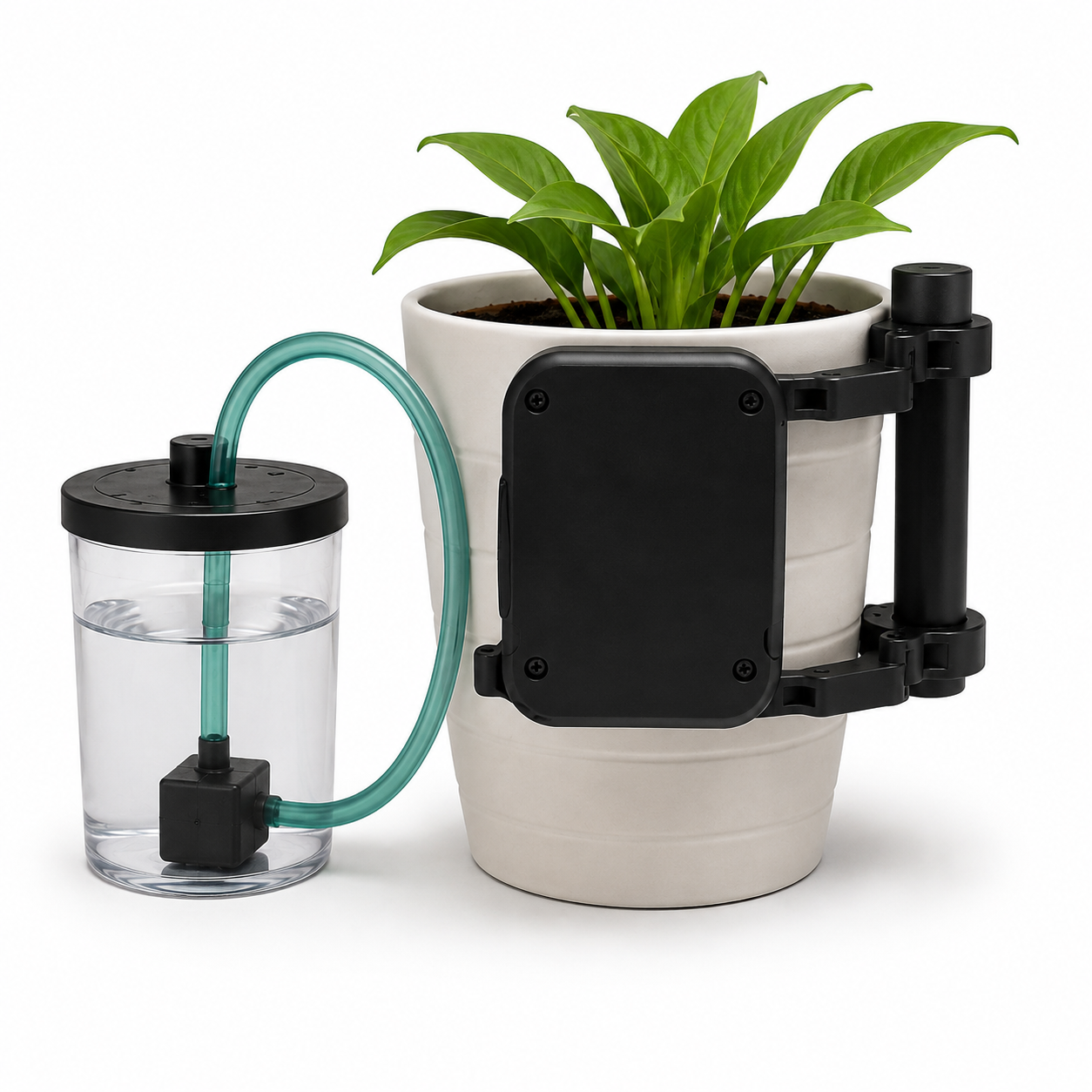

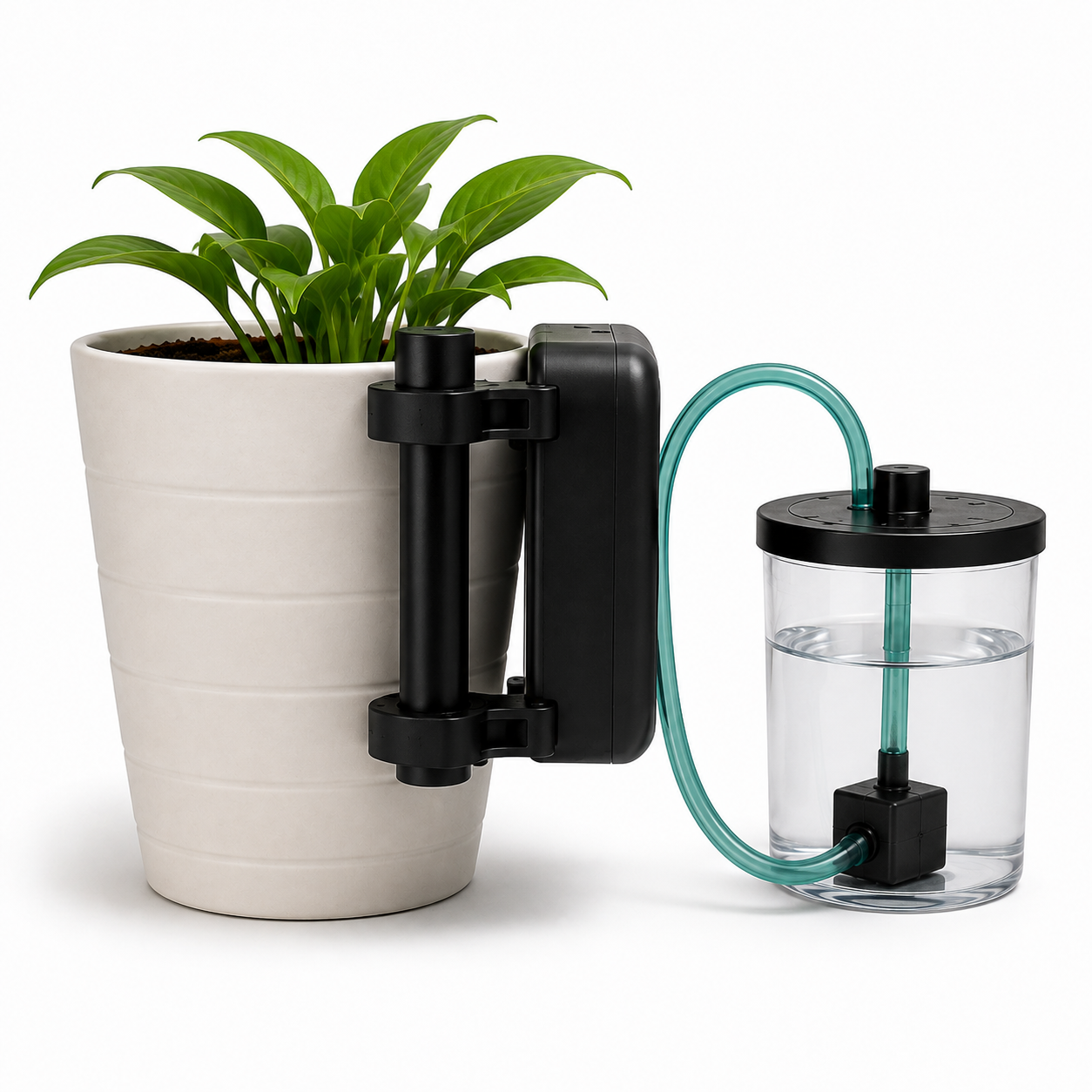

An intelligent plant-care system that monitors soil moisture, temperature, humidity and ambient light while automatically watering the plant when       the soil becomes too dry.

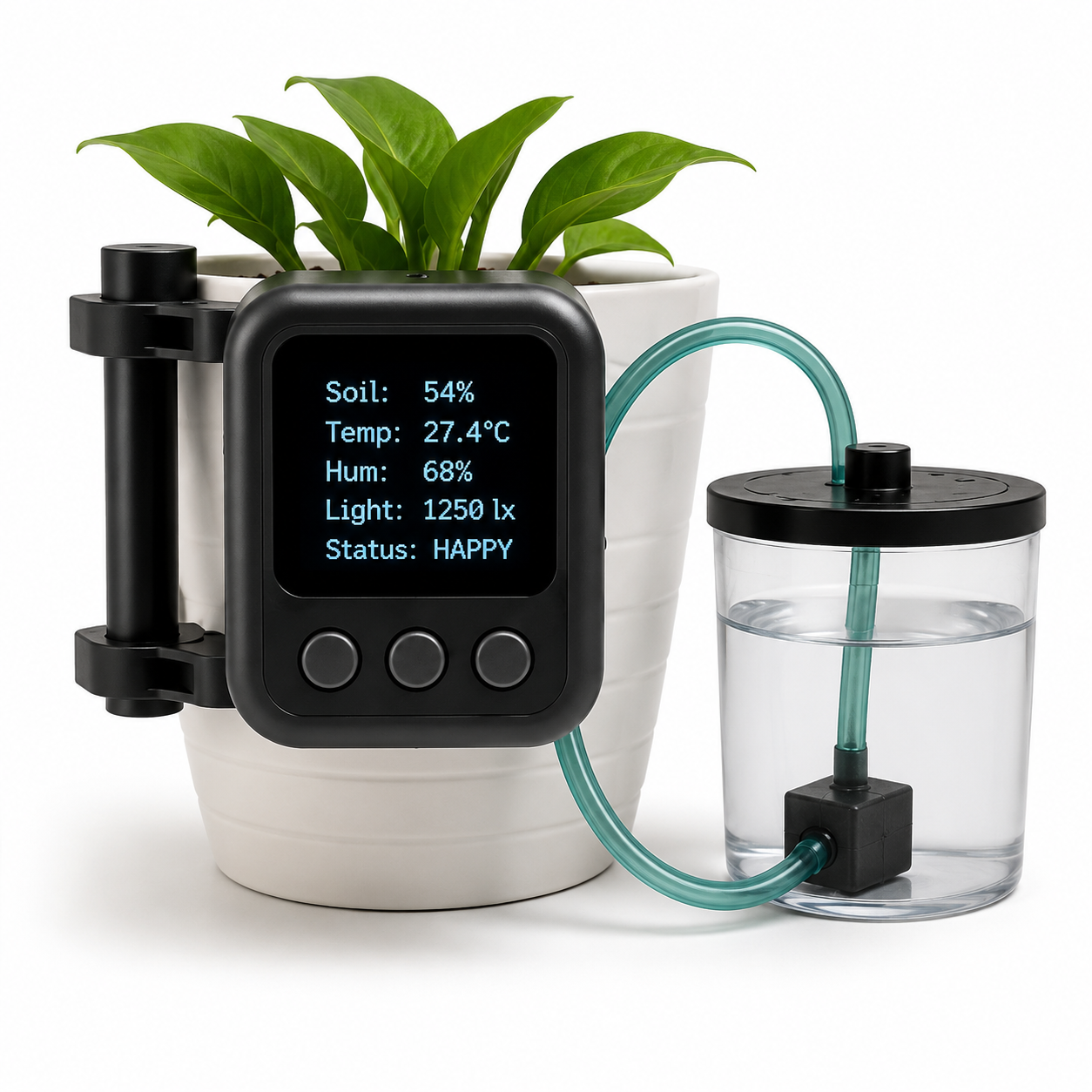

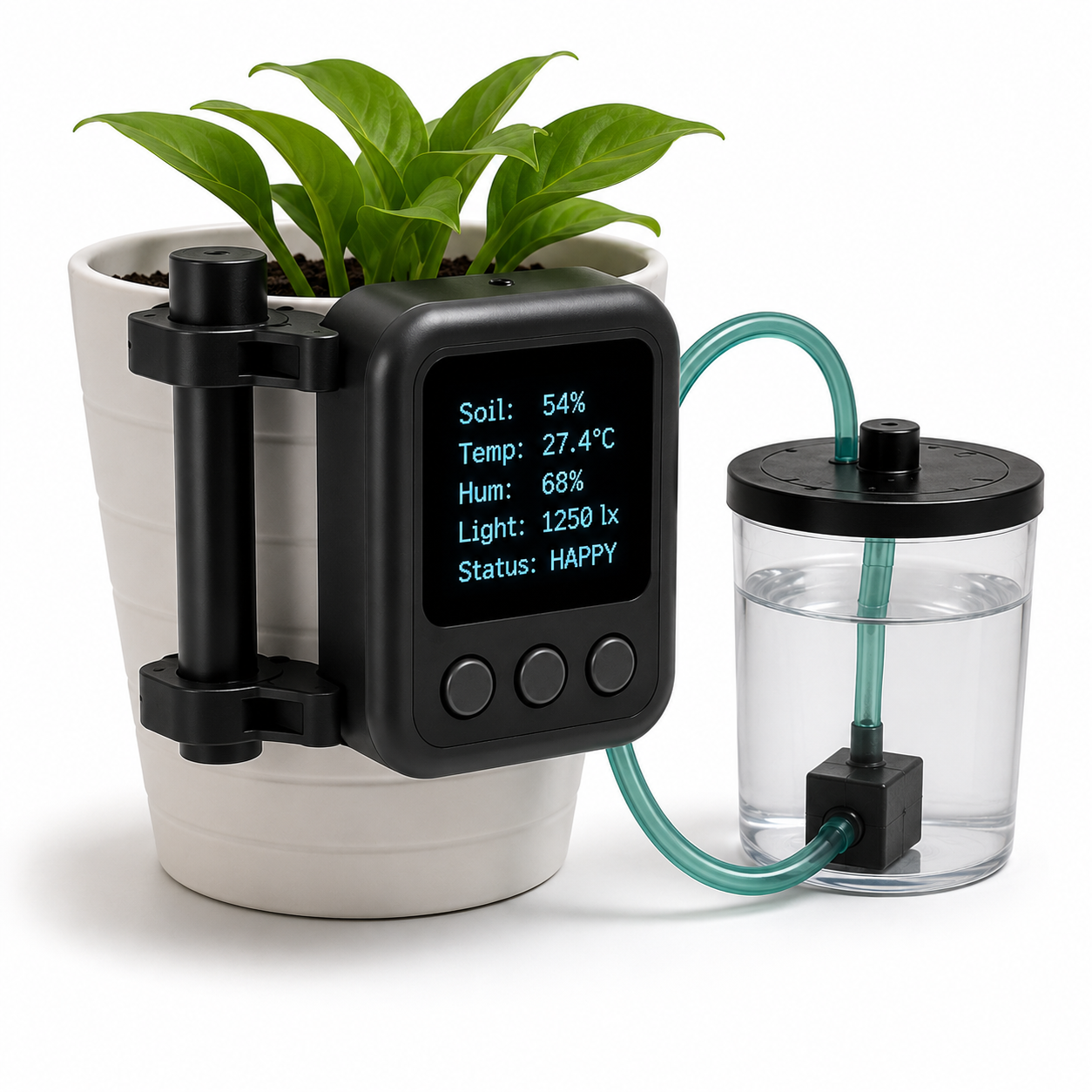

Smart Plant Guardian is an intelligent plant-care and environmental monitoring system designed to          make plant maintenance smarter, more interactive, and more convenient. It continuously monitors soil moisture, temperature, humidity, and ambient light to help users understand the conditions affecting       plant growth. Real-time readings are presented through an integrated OLED display, while an          automated watering system can deliver water when the soil moisture level falls below the required condition. The system supports Manual, Auto, and Experiment modes and provides visual and audio feedback, making it suitable for home use, STEM learning, demonstrations, and practical exploration of sensing and automation.
Detailed Attributes

Product Type: Smart plant-care and monitoring system; Microcontroller: Arduino UNO R4 WiFi; Monitoring Parameters: Soil moisture, temperature, humidity, ambient light; Display: 1.3-inch 128×64 I²C OLED; Watering: Automatic pump-based; Operating Modes: Manual, Auto, Experiment; User Controls: 3 push buttons; Status Feedback: RGB LED and buzzer; Water Reservoir: 500–750 mL; Power: USB-C, 5 V / 3 A recommended

Highlights

"• Automatic watering when soil becomes dry
• Soil moisture, temperature, humidity and light monitoring
• Real-time OLED display
• Manual, Auto and Experiment modes
• RGB and buzzer status feedback
• Adjustable plant-pot mounting system"

Specification

"Microcontroller: Arduino UNO R4 WiFi — 1 Capacitive soil moisture sensor — 1
SHT31 temperature & humidity sensor — 1 BH1750 ambient light sensor — 1
1.3-inch 128×64 I²C OLED display — 1 5 V submersible water pump — 1
5 V relay module — 1
Active 5 V buzzer — 1
5 mm common-cathode RGB LED — 1 Momentary push buttons — 3
Water reservoir — 500–750 mL
Silicone water tube — approx. 4 mm ID, 1–1.5 m USB-C power supply — 5 V / 3 A recommended Custom enclosure with adjustable clamp — 1"
