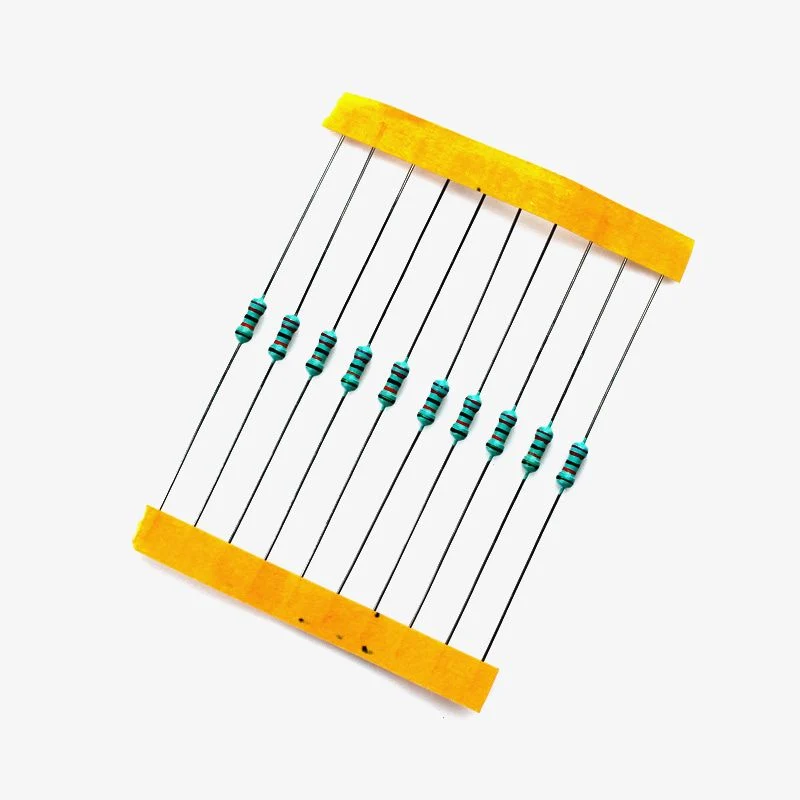

The 220KΩ 1/4 Watt Carbon Film Resistor is a general-purpose through-hole resistor designed for use in electronic circuits and prototyping applications. With a resistance value of 220KΩ, a 0.25W power rating, and ±1% tolerance, it is suitable for applications where a relatively high resistance value and tighter resistance tolerance are required.
Its axial through-hole construction makes it convenient for breadboard experiments, soldered circuits and educational electronics projects. The supplied resistor has strong leads and color coding for convenient identification during circuit assembly.
The resistor leads are specified by the source as approximately 0.55 mm in diameter and constructed using tin and copper plating over steel wire, making them suitable for repeated insertion into solderless prototyping boards.
Detailed Product Attributes
- Component Type: Carbon Film Resistor
- Resistance Value: 220KΩ
- Power Rating: 1/4 Watt (0.25W)
- Tolerance: ±1%
- Construction: Axial
- Mounting Type: Through-Hole
- Resistor Technology: Carbon Film
- Lead Diameter: Approx. 0.55 mm
- Lead Construction: Tin and copper plated over steel wire
- Package Quantity: 10 Pieces
- Application: General-purpose electronics and circuit prototyping
Technical Specifications
| Specification | Details |
|---|---|
| Resistance | 220KΩ |
| Power Rating | 0.25W (1/4W) |
| Tolerance | ±1% |
| Resistor Type | Carbon Film |
| Package / Construction | Axial |
| Mounting | Through-Hole |
| Lead Diameter | Approx. 0.55 mm |
| Lead Material / Finish | Tin and copper plated over steel wire |
| Quantity | 10 Resistors |
| Primary Use | Circuit prototyping and general electronics |
Technical Specification Pointer
220KΩ carbon film through-hole resistor, 0.25W power rating, ±1% tolerance, supplied as a 10-piece pack.
Key Features
- 220KΩ Resistance: Suitable for circuits requiring a relatively high resistance value.
- ±1% Tolerance: Provides tighter resistance tolerance for more consistent circuit calculations.
- 1/4W Power Rating: Suitable for a wide range of low-power electronic circuits within its rated operating limits.
- Through-Hole Design: Convenient for breadboards, prototyping boards and soldered circuits.
- Strong Leads: Approximately 0.55 mm leads are suitable for insertion into solderless prototyping boards.
- 10-Piece Pack: Provides multiple resistors for electronics experiments and project development.
Recommended Applications
- Breadboard circuit prototyping
- Voltage-divider circuits
- Transistor biasing circuits
- Signal and control circuits
- General-purpose resistor networks
- Electronics education and laboratory experiments
- Arduino and microcontroller projects where a 220KΩ resistance is appropriate
Educational Applications
Suitable for teaching and experimenting with:
- Ohm’s Law
- Resistance and current relationships
- Voltage-divider circuits
- Series and parallel resistor networks
- Basic circuit analysis
- Electronic component identification
- Breadboard circuit construction
What’s Included
- 10 × 220KΩ 1/4W Carbon Film Resistors, ±1% Tolerance
Important Notes
- This is a 220KΩ resistor, not a 220Ω resistor.
- Do not exceed the resistor’s 0.25W power rating.
- The actual circuit current and voltage across the resistor depend on the circuit design.
- Resistors are passive components and do not provide voltage regulation or current control independently of the surrounding circuit.
- Use appropriate resistor values based on the requirements of the specific circuit.
Product Summary
The 220KΩ 1/4 Watt Carbon Film Resistor – 1% Tolerance is a practical through-hole resistor for electronics prototyping, educational experiments and general-purpose circuit construction. Its 220KΩ resistance, ±1% tolerance and 0.25W rating make it useful for a variety of low-power electronic circuits, while its axial leads make it convenient for breadboard and soldered applications.
